Grohtherm SmartControl Thermostat for concealed installation with 3 valves
Toote number
29165LS0
EAN-kood
4005176413674
Värvus
moon white/chrome
€
965,06
Soovitatav jaehind koos käibemaksuga
Põhijooned
- trim set for use with rough-in set GROHE Rapido SmartBox 35 601 000
- metal wall escutcheon with GROHE FastFixation (covered escutcheon and shaft sealing, covered fixing), retroactively 6° adjustable
- 10 mm thin profile escutcheon
- GROHE LongLife finish
- GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE EcoJoy to Full Flow
- exchangeable symbols
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE SafeStop at 38°C
- GROHE SafeStop Plus temperature limiter at 115° F/46° C
- built-in non return valves and dirt strainers
- multiple outlets can be run simultaneously
- cover plate in moon white acrylic glass
- without roughing-in-set
- flow performance 9.5 gpm / 1.8 gpm
- optional flow reducer for CALGreen compliance included
CAD-andmed

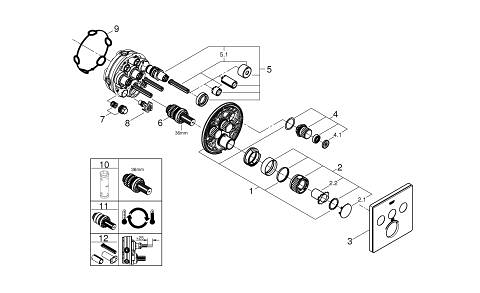

| Järjekorranumber | Toote kirjeldus | Tellimuse number |
|---|---|---|
| * Lisatarvikud | ||
| 1 | Mounting plate | 48362000 |
| 2 | Temperature control handle | 49029000 |
| 2.1 | Cover cap | 1015030000 |
| 2.2 | handle adaptor | 1015059990 |
| 3 | Escutcheon | 49055LS0 |
| 4 | Push button | 48361000 |
| 4.1 | pushbutton | 14077000 |
| 5 | Cartridge | 48359000 |
| 5.1 | Spindle | 49088000 |
| 6 | Thermostatic compact cartridge 3/4" | 49028000 |
| 7 | Non-return valves | 47979000 |
| 8 | Seal | 48360000 |
| 9 | Socket spanner | 49059000* |
| 10 | GROHE TurboStat cartridge 3/4" | 49003000* |
| 11 | Service stops | 1405300M* |
| 12 | Universal extension set single-lever mixers, 25 mm | 14048000* |
