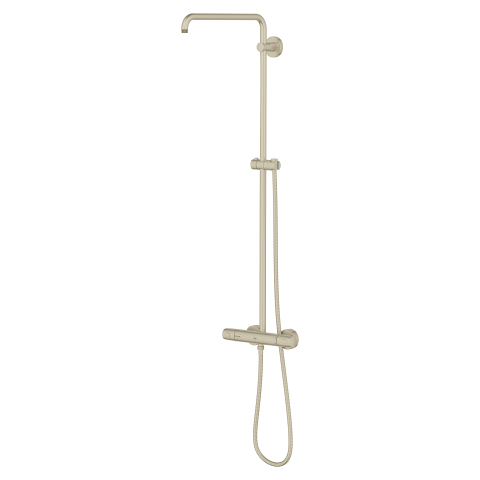

Euphoria System Shower system with thermostatic mixer for wall mounting
Toote number
26728EN0
EAN-kood
4005176645259
Värvus
brushed nickel
€
996,54
Soovitatav jaehind koos käibemaksuga
Põhijooned
- consisting of:
- horizontal swivable 450 mm shower arm
- exposed thermostat with Aquadimmer function
- gliding element
- Rotaflex Metal Long-Life TwistStop shower hose 1500 mm (28 417 000)
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE SafeStop at 38°C
- GROHE SafeStop Plus optional temperature limiter at 46° C included
- GROHE CoolTouch no risk of scalding
- GROHE MetalGrip ergonomically shaped metal handles
- GROHE LongLife finish
- GROHE FastFixation upper bracket adjustable
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- optional upgrade: GROHE EasyReach tray (26 362)
CAD-andmed

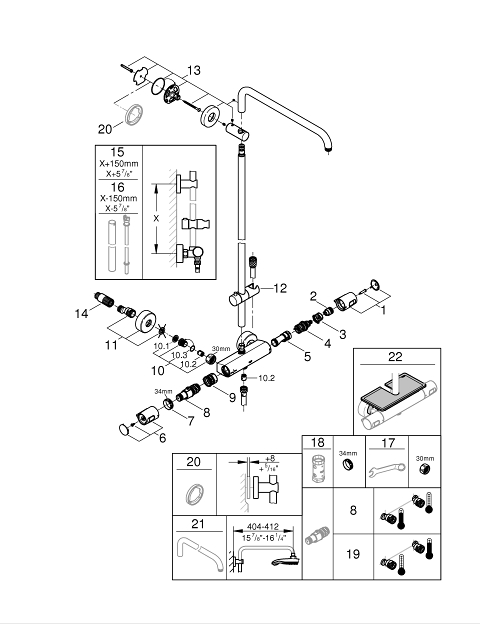

| Järjekorranumber | Toote kirjeldus | Tellimuse number |
|---|---|---|
| * Lisatarvikud | ||
| 1 | Precision Trend shut-off handle | 47991EN0 |
| 2 | Stop ring | 47986000 |
| 3 | Stop ring | 47965000 |
| 4 | Aquadimmer | 47364000 |
| 5 | Water flow | 47887000 |
| 6 | Precision Trend handle | 47992EN0 |
| 7 | Fitting ring | 47743000 |
| 8 | Thermostatic compact cartridge 1/2" | 49110000 |
| 9 | Race | 47975000 |
| 10 | Non-return valve | 47189EN0 |
| 11 | S-union | 12662EN0 |
| 12 | Glide element | 12140EN0 |
| 13 | Shower bar holder | 48279EN0 |
| 14 | Adapter | 4916300M |
| 17 | Special spanner | 19377000* |
| 18 | Socket spanner | 19332000* |
| 19 | GROHE TurboStat cartridge 1/2" | 47175000* |
| 22 | GROHE EasyReach tray | 26362LN1* |
