Uniset Element for WC
Toote number
39165000
EAN-kood
4005176323423
Värvus
€
173,60
Soovitatav jaehind koos käibemaksuga
Põhijooned
- with flushing cistern GD 2, 6 - 9 l
- 778 x 440 x 116 mm
- for single installation
- 2 WC fixing bolts
- distance of fixing bolts 180/230 mm
- fixing device for ceramic
- outlet bend Ø 90 mm
- reducer Ø 90/110 mm
- inlet and outlet connecting set
- flushing cistern GD 2, 6 - 9 l, containing following features:
- adjustment ex factory 6 l and 3 l
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- water supply from left/right/back or top
- low noise (group I acc. to German Noise Specification)
- cistern insulated against condensation
- ½" angle valve with push fit flexible hose union
- no tools required for the installation of the inspection shaft incl. protection during construction phase
- for vertical or horizontal use
- preparation for shower toilets with additional accessory 40 899 000 (sold separately)
- for mounting of small flush plates please order revision shaft 40 911 000 (sold separately)
CAD-andmed

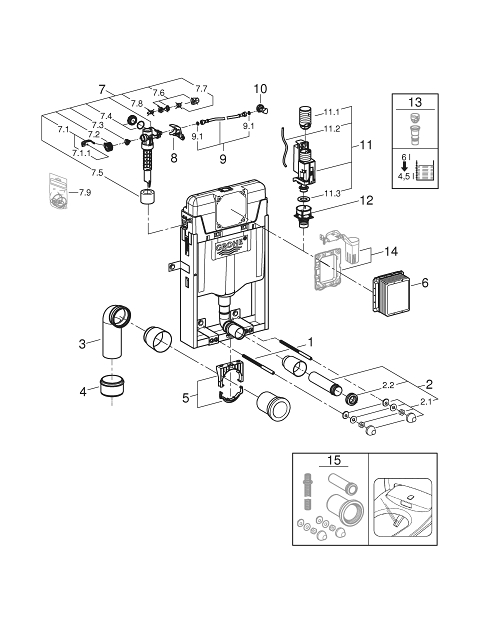

Järjekorranumber | Toote kirjeldus | Tellimuse number |
---|---|---|
* Lisatarvikud | ||
1 | Threaded bolt | 4276400M |
2 | WC inlet and outlet connecting set | 37311K00 |
2.1 | Basin fastening | 43511SH0 |
2.2 | Connector | 37119000 |
3 | Reducer | 42242000 |
4 | PP-outlet bend Ø 90 mm | 42327000 |
5 | Support for outlet bend | 42243000 |
6 | Inspection shaft | 66783000 |
7 | Filling valve | 37095000 |
7.1 | Lever | 43734000 |
7.1.1 | Seal | 4377000M |
7.2 | Valve head | 43536000 |
7.3 | Membrane | 4375800M |
7.4 | Screw cap | 43735000 |
7.5 | Valve float, 5 pcs. | 4379100M |
7.6 | Set of seals | 43722000* |
8 | Support device | 42246000 |
9 | Tube | 42397000 |
9.1 | Sealing washer | 0319100M |
10 | Angle valve | 42343000 |
11 | Dual Flush discharge valve AV1 | 42320000 |
11.1 | Extension for overflow pipe | 42313000 |
11.2 | Pneumatic hose | 42319000 |
11.3 | Seal | 42310000 |
12 | Valve seat for GD2 | 42315000 |
13 | 4.5 l adapter for GD2 | 42333000* |
14 | Retro-fit set | 38796000* |
15 | Retrofit kit for shower toilets Sensia Arena and IGS | 40899000* |
